| Brand Name : | Cnlinko |
| Model Number : | LP24-USB |
| Certification : | CE/UL/RoSH/CCC |
| Price : | US $0.5-5 |
| Payment Terms : | T/T, D/A, D/P, L/C, Western Union, MoneyGram |
| Supply Ability : | 20000 Piece/Pieces per Day |
| Delivery Time : | 3-7 days |

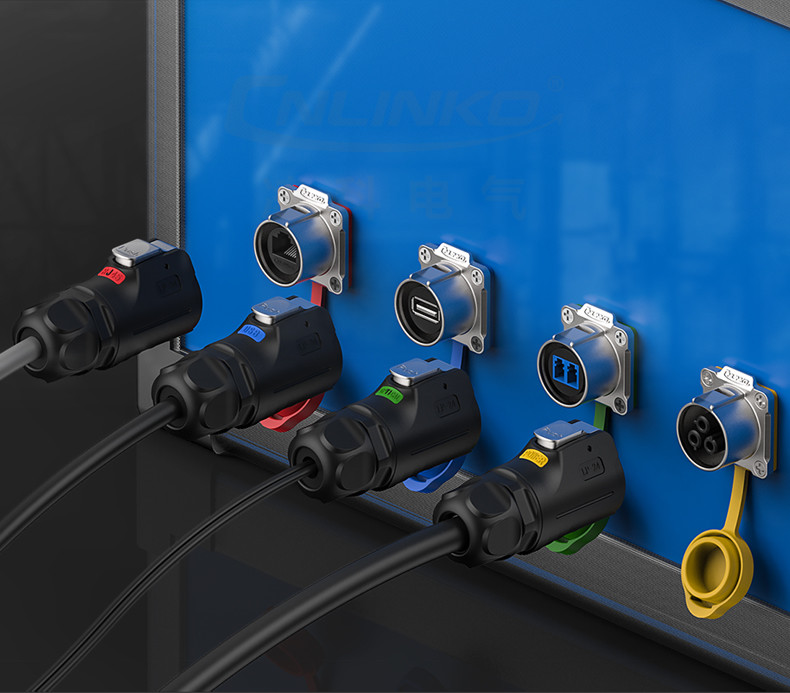

Key Features
Use of zinc alloy materials, high-frequency noise immunity, and electromagnetic interference protection
The silicone material clamps The wire sleeve, realizes to the wire protection effectively
The product conforms to the IP65/IP67 protection grade under the connection condition
The plug with the standard line length 0.5M, the operation is simple
Product details
Type : IP67 Data connector
Number of contacts : 9 pins(3.0)&4PINS(2.0)
Wire Size : 0.15mm2 ~ 0.2mm2/26~24 AWG
Rated Current : 1.5A
Contact Termination : Soldering/Crimping
Housing&Insulation material : High-performance engineering plastics
Metal material : Zinc alloy(pearl hard chrome)
Certificate : CCC/ TUV/ UL
| PINS | 3PIN POWER | RJ45 | USB | OPTIC FIBER |
| Cable specification | 2.5mm2~4mm2/ 14-12AWG | 0.15mm2~0.2mm2/ 26-24 AWG | ||
| Diameter range | Φ8mm~Φ12mm | Φ5.5mm~Φ7mm | ||
| Contact diameter × number | 3.0 x 3 | 8PIN | 9PIN(3.0)&4PIN(2.0) | 2 |
| Rated Current (A) | 20A | 1.5A | / | |
| Operating voltage (AC.V.rms) | 500V | / | ||
| Contact resistance | <1mΩ | <30mΩ | / | |
| Temperature rise | 20A contact temperature below 30℃ 25A......40℃↓, 30A......50℃↓. | / | ||
| Withstanding Voltage (AC.V) 1 minute | 2500V | 1000V | ||
| Insulation resistance | >500MΩ | |||
| Protection level | IP65/IP67 | |||
| Durability | ≥500 times | |||
| Working temperature | -40℃~80℃ | |||
| Connecting mode | Easy locking type | |||
| Assembly wire | Soldering/Crimping | / | ||
| MATERIALS | ||||
| Housing&insulation parts | high-perpormance engineering plastics | |||
| Hardware | zinc alloy(pearl hard chrome) | |||
| cooper pins | cooper alloy (gold-plated 4U) | |||
| waterproof cover | Silica gel | |||
| Flammability rating | UL94-V0 | |||
